EntityListMdiWindow Class Reference

Base class for entity list MDI windows providing stale indicator support. More...

#include <EntityListMdiWindow.hpp>

Inheritance diagram for EntityListMdiWindow:

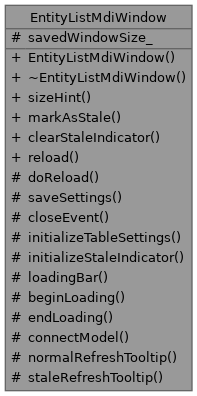

Collaboration diagram for EntityListMdiWindow:

Public Slots
void	markAsStale ()
	Mark the list as stale (data changed on server).
void	clearStaleIndicator ()
	Clear the stale indicator.
void	reload ()
	Reload data from the server.

Public Member Functions
	EntityListMdiWindow (QWidget *parent=nullptr)
QSize	sizeHint () const override

Protected Member Functions
virtual void	doReload ()=0
	Subclass implementation of the reload operation.
virtual void	saveSettings ()
	Save window settings (column visibility, window size, etc.).
void	closeEvent (QCloseEvent *event) override
void	initializeTableSettings (QTableView *tableView, QAbstractItemModel *sourceModel, std::string_view settingsGroup, const QVector< int > &defaultHiddenColumns={}, const QSize &defaultSize={900, 400}, int settingsVersion=1, QSplitter *splitter=nullptr)
	Configure table header, column visibility, and settings persistence.
void	initializeStaleIndicator (QAction *refreshAction, const QString &iconPath)
	Initialize the stale indicator support.
QProgressBar *	loadingBar ()
	Return the shared loading progress bar.
void	beginLoading ()
	Show the loading bar and disable the reload action.
void	endLoading ()
	Hide the loading bar and re-enable the reload action.
void	connectModel (AbstractClientModel *model)
	Wire endLoading() to the model's standard lifecycle signals.
virtual QString	normalRefreshTooltip () const
	Get the normal (non-stale) tooltip text for the refresh action.
virtual QString	staleRefreshTooltip () const
	Get the stale tooltip text for the refresh action.

Protected Attributes
QSize	savedWindowSize_
	Saved window size from QSettings.

Detailed Description

Base class for entity list MDI windows providing stale indicator support.

This class provides common functionality for entity list windows including:

• Stale indicator support with pulse animation on the refresh action
• markAsStale() and clearStaleIndicator() slots for server-side change notifications

Subclasses must:

1. Call initializeStaleIndicator() after creating their refresh action
2. Implement reload() to refresh data from the server
3. Call clearStaleIndicator() at the start of their reload() implementation

Example usage in subclass:

void MyEntityMdiWindow::setupToolbar() {
    refreshAction_ = toolbar_->addAction(...);
    initializeStaleIndicator(refreshAction_, IconUtils::iconPath(Icon::ArrowSync));
}

void MyEntityMdiWindow::reload() {
    clearStaleIndicator();
    model_->refresh();
}

Member Function Documentation

markAsStale

void markAsStale ( )

slot

Mark the list as stale (data changed on server).

Starts a pulse animation on the refresh action to indicate that server-side data has changed and the list should be reloaded.

clearStaleIndicator

void clearStaleIndicator ( )

slot

Clear the stale indicator.

Stops the pulse animation and restores the normal refresh icon. Call this at the start of reload() implementations.

reload

void reload ( )

slot

Reload data from the server.

Clears the stale indicator, shows the loading bar, disables the reload action, then delegates to doReload(). Subclasses must not override this.

doReload()

virtual void doReload ( )

protectedpure virtual

Subclass implementation of the reload operation.

Called by reload() after the loading state has been set up. Do NOT call clearStaleIndicator() or beginLoading() here — the base class handles both before invoking doReload().

Implemented in BadgeDefinitionMdiWindow, BadgeSeverityMdiWindow, and CodeDomainMdiWindow.

saveSettings()

void saveSettings ( )

protectedvirtual

Save window settings (column visibility, window size, etc.).

When initializeTableSettings() has been called, this saves header state and window size automatically. Otherwise it is a no-op. Called automatically on close via closeEvent().

initializeTableSettings()

void initializeTableSettings ( QTableView *  tableView, QAbstractItemModel *  sourceModel, std::string_view  settingsGroup, const QVector< int > &  defaultHiddenColumns = {}, const QSize &  defaultSize = {900, 400}, int  settingsVersion = 1, QSplitter *  splitter = nullptr  )

protected

Configure table header, column visibility, and settings persistence.

Call once in setupTable() after creating tableView and model. Sets ResizeToContents on all columns, wires up column visibility context menu, restores saved header state and window size.

Parameters

tableView	The QTableView to manage
sourceModel	The source model (for column count/headers)
settingsGroup	QSettings group name (e.g. "CountryListWindow")
defaultHiddenColumns	Columns hidden by default when no saved state
defaultSize	Default window size when no saved size
settingsVersion	Bump when column layout changes to discard old state

initializeStaleIndicator()

void initializeStaleIndicator ( QAction *  refreshAction, const QString &  iconPath  )

protected

Initialize the stale indicator support.

Call this after creating the refresh action in setupToolbar().

Parameters

refreshAction	The refresh/reload action to animate
iconPath	Path to the refresh icon SVG resource

loadingBar()

QProgressBar * loadingBar ( )

protected

Return the shared loading progress bar.

Subclasses insert this widget into their layout in setupUi(), placing it between the toolbar and the table view: layout->addWidget(toolbar_); layout->addWidget(loadingBar()); // <– add this line layout->addWidget(tableView_);

beginLoading()

void beginLoading ( )

protected

Show the loading bar and disable the reload action.

Call at the start of reload(), after clearStaleIndicator().

endLoading()

void endLoading ( )

protected

Hide the loading bar and re-enable the reload action.

Call from onDataLoaded() and onLoadError().

connectModel()

void connectModel ( AbstractClientModel *  model )

protected

Wire endLoading() to the model's standard lifecycle signals.

Connects AbstractClientModel::dataLoaded and AbstractClientModel::loadError to endLoading() so that subclasses do not need to call endLoading() manually in every handler.

normalRefreshTooltip()

virtual QString normalRefreshTooltip ( ) const

protectedvirtual

Get the normal (non-stale) tooltip text for the refresh action.

Override this to customize the tooltip text.

Reimplemented in AccountMdiWindow, AppMdiWindow, AppVersionMdiWindow, BadgeDefinitionMdiWindow, BadgeSeverityMdiWindow, BondInstrumentMdiWindow, BookMdiWindow, BookStatusMdiWindow, BusinessCentreMdiWindow, BusinessDayConventionTypeMdiWindow, BusinessUnitMdiWindow, BusinessUnitTypeMdiWindow, CatalogMdiWindow, ChangeReasonCategoryMdiWindow, ChangeReasonMdiWindow, CodeDomainMdiWindow, CommodityInstrumentMdiWindow, ConcurrencyPolicyMdiWindow, ContactTypeMdiWindow, CounterpartyMdiWindow, CountryMdiWindow, CreditInstrumentMdiWindow, CurrencyMarketTierMdiWindow, CurrencyMdiWindow, DatasetBundleMdiWindow, DayCountFractionTypeMdiWindow, EquityInstrumentMdiWindow, FloatingIndexTypeMdiWindow, FxInstrumentMdiWindow, InstrumentMdiWindow, JobDefinitionMdiWindow, LegTypeMdiWindow, MonetaryNatureMdiWindow, OrgExplorerMdiWindow, OriginDimensionMdiWindow, PartyIdSchemeMdiWindow, PartyMdiWindow, PartyStatusMdiWindow, PartyTypeMdiWindow, PaymentFrequencyTypeMdiWindow, PortfolioExplorerMdiWindow, PortfolioMdiWindow, PurposeTypeMdiWindow, QueueMonitorMdiWindow, ReportDefinitionMdiWindow, ReportInstanceMdiWindow, ReportTypeMdiWindow, RoleMdiWindow, RoundingTypeMdiWindow, SystemSettingMdiWindow, TenantMdiWindow, TenantTypeMdiWindow, and TradeMdiWindow.

staleRefreshTooltip()

virtual QString staleRefreshTooltip ( ) const

protectedvirtual

Get the stale tooltip text for the refresh action.

Override this to customize the tooltip text.

Member Data Documentation

savedWindowSize_

QSize savedWindowSize_

protected

Saved window size from QSettings.

Set by initializeTableSettings() when restoring a previously saved window size. Used by sizeHint() to return the saved size instead of the default.
