DataTransferPlugin Class Reference

Qt plugin providing the Data Transfer top-level menu. More...

#include <DataTransferPlugin.hpp>

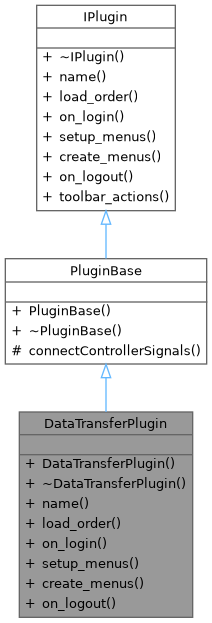

Inheritance diagram for DataTransferPlugin:

Collaboration diagram for DataTransferPlugin:

Public Member Functions
	DataTransferPlugin (QObject *parent=nullptr)
QString	name () const override
	Returns a short, unique plugin name (e.g. "ores.qt.legacy").
int	load_order () const override
	Load order hint — lower values are initialised first (default 100).
void	on_login (const plugin_context &ctx) override
	Create controllers and subscribe to server events.
void	setup_menus (const shared_menus_context &ctx) override
	Contribute items to host-owned shared menus.
QList< QMenu * >	create_menus () override
	Build and return standalone domain menus for this plugin.
void	on_logout () override
	Destroy controllers and unsubscribe from server events.
Public Member Functions inherited from PluginBase
	PluginBase (QObject *parent=nullptr)
Public Member Functions inherited from IPlugin
virtual QList< QAction * >	toolbar_actions ()
	Return actions to be added to the main toolbar.

Additional Inherited Members
Signals inherited from PluginBase
void	statusMessage (const QString &msg)
	Status or error message to display in the host status bar.
void	windowCreated (DetachableMdiSubWindow *window)
	A detachable MDI sub-window was created by a controller.
void	windowDestroyed (DetachableMdiSubWindow *window)
	A detachable MDI sub-window owned by a controller was destroyed.
Protected Member Functions inherited from PluginBase
void	connectControllerSignals (EntityController *ctrl)
	Wire the four standard EntityController signals to PluginBase signals.

Detailed Description

Qt plugin providing the Data Transfer top-level menu.

Manages data catalogue controllers (data domains, subject areas, catalogues, dataset bundles, methodologies, and dimension types). Data Librarian and Import ORE Data are contributed by RefdataPlugin and TradingPlugin via setup_menus on the shared data_transfer_menu. Loaded as a shared library by QPluginLoader at application startup.

Member Function Documentation

name()

QString name ( ) const

overridevirtual

Returns a short, unique plugin name (e.g. "ores.qt.legacy").

Implements IPlugin.

load_order()

int load_order ( ) const

overridevirtual

Load order hint — lower values are initialised first (default 100).

Reimplemented from IPlugin.

on_login()

void on_login ( const plugin_context &  ctx )

overridevirtual

Create controllers and subscribe to server events.

Called immediately after successful login. ctx provides the shared application resources (client, caches, MDI area, etc.).

Implements IPlugin.

setup_menus()

void setup_menus ( const shared_menus_context &  ctx )

overridevirtual

Contribute items to host-owned shared menus.

Called once at startup, before create_menus(). The host passes a struct containing pre-created menus that plugins may freely add sub-menus or actions to.

Plugins that only need to add sub-menus to these shared containers should do all their work here and return {} from create_menus().

The default implementation does nothing.

Reimplemented from IPlugin.

create_menus()

QList< QMenu * > create_menus ( )

overridevirtual

Build and return standalone domain menus for this plugin.

Called once at startup, after setup_menus(). The host inserts the returned menus into the menu bar before the &System menu, in plugin load_order. Menus are initially disabled and are enabled on login.

Plugins that contribute exclusively to shared menus via setup_menus() should return an empty list here.

Implements IPlugin.

on_logout()

void on_logout ( )

overridevirtual

Destroy controllers and unsubscribe from server events.

Called when the client disconnects, before the returned menus are removed.

Implements IPlugin.
