TradeDetailDialog Class Reference

Detail dialog for viewing and editing a trade and its linked instrument. More...

#include <TradeDetailDialog.hpp>

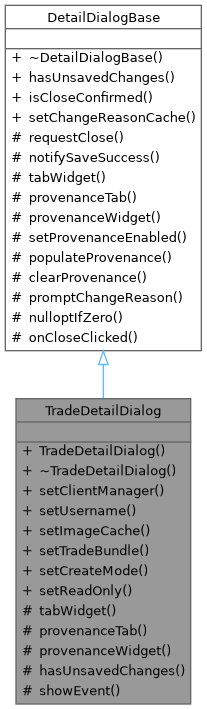

Inheritance diagram for TradeDetailDialog:

Collaboration diagram for TradeDetailDialog:

Signals
void	tradeSaved (const QString &code)
void	tradeDeleted (const QString &code)
Signals inherited from DetailDialogBase
void	closeRequested ()
	Emitted when the dialog wants to close its container window.
void	statusMessage (const QString &message)
	Emitted to show a status message in the status bar.
void	errorMessage (const QString &message)
	Emitted when an error occurs that should be shown to the user.

Public Member Functions
	TradeDetailDialog (QWidget *parent=nullptr)
void	setClientManager (ClientManager *clientManager)
void	setUsername (const std::string &username)
void	setImageCache (ImageCache *cache)
void	setTradeBundle (const trading::messaging::trade_export_item &bundle)
	Populate the dialog with a trade bundle (trade + instrument).
void	setCreateMode (bool createMode)
void	setReadOnly (bool readOnly)
Public Member Functions inherited from DetailDialogBase
bool	isCloseConfirmed () const
	Returns true if the user has already confirmed closing this dialog.
void	setChangeReasonCache (ChangeReasonCache *cache)
	Inject the shared change reason cache.

Protected Member Functions
QTabWidget *	tabWidget () const override
	Returns the dialog's QTabWidget (named "tabWidget" in .ui).
QWidget *	provenanceTab () const override
	Returns the Provenance tab widget (named "provenanceTab" in .ui).
ProvenanceWidget *	provenanceWidget () const override
	Returns the promoted ProvenanceWidget (named "provenanceWidget" in .ui).
bool	hasUnsavedChanges () const override
void	showEvent (QShowEvent *event) override
Protected Member Functions inherited from DetailDialogBase
void	requestClose ()
	Request closure of the container window.
void	notifySaveSuccess (const QString &message)
	Notify that a save operation completed successfully.
void	setProvenanceEnabled (bool enabled)
	Enable or disable the Provenance tab.
void	populateProvenance (int version, const std::string &modified_by, const std::string &performed_by, std::chrono::system_clock::time_point recorded_at, const std::string &change_reason_code, const std::string &change_commentary)
	Populate the embedded ProvenanceWidget with entity data.
void	clearProvenance ()
	Clear all fields in the embedded ProvenanceWidget.
std::optional< change_reason_selection >	promptChangeReason (ChangeReasonDialog::OperationType opType, bool isDirty, std::string_view category="system")
	Show the change reason dialog and return the user's selection.

Additional Inherited Members
Protected Slots inherited from DetailDialogBase
void	onCloseClicked ()
	Called when the Close button is clicked.
Static Protected Member Functions inherited from DetailDialogBase
template<typename T >
static std::optional< T >	nulloptIfZero (T v)
	Return std::optional(v) when v is non-zero, std::nullopt otherwise.

Detailed Description

Detail dialog for viewing and editing a trade and its linked instrument.

The dialog contains trade tabs (General, Dates) followed by instrument-family tabs that are revealed once the instrument loads asynchronously. A single Provenance tab holds two sections — Trade and Instrument — so that both audit trails are visible in one place.

Save semantics: if the instrument is dirty, it is saved first; the trade is then always saved so that any instrument change is reflected in the trade version number (downstream notification invariant).

Member Function Documentation

setTradeBundle()

void setTradeBundle

(

const trading::messaging::trade_export_item &

bundle

)

Populate the dialog with a trade bundle (trade + instrument).

The caller must provide the resolved instrument variant alongside the trade. When the trade has no linked instrument (create mode, or a version with no instrument reference) pass a trade_export_item whose instrument is monostate; the dialog then routes to IInstrumentForm::clear() instead of setInstrument().

tabWidget()

QTabWidget * tabWidget ( ) const

overrideprotectedvirtual

Returns the dialog's QTabWidget (named "tabWidget" in .ui).

Implements DetailDialogBase.

provenanceTab()

QWidget * provenanceTab ( ) const

overrideprotectedvirtual

Returns the Provenance tab widget (named "provenanceTab" in .ui).

Implements DetailDialogBase.

provenanceWidget()

ProvenanceWidget * provenanceWidget ( ) const

overrideprotectedvirtual

Returns the promoted ProvenanceWidget (named "provenanceWidget" in .ui).

Implements DetailDialogBase.

hasUnsavedChanges()

bool hasUnsavedChanges ( ) const

overrideprotectedvirtual

Returns true if the dialog has unsaved changes. Subclasses override.

Reimplemented from DetailDialogBase.
