ORE Studio Assets Component

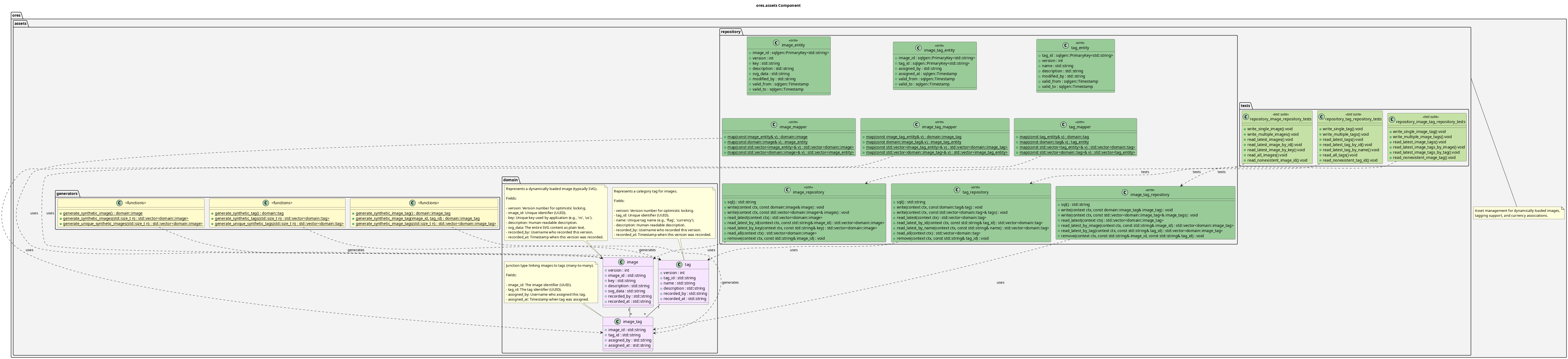

Diagram:

This module provides management of dynamically loaded images (typically SVG), tagging support for categorization, and currency-to-image associations. Key features include:

• Image storage: SVG images stored as text with version tracking
• Tag management: categorization of images (e.g., 'flag', 'currency', 'commodity')
• Image-tag associations: many-to-many linking of images to tags
• Currency-image associations: linking currencies to their primary image (flag)
• Message-based API: asynchronous request/response handlers for client-server communication (subsystem range 0x4000-0x4FFF)
• Temporal database support: version tracking with valid_from and valid_to fields
• Synthetic data generation: test image and tag generation for development

The module is organized into namespaces: domain (core entities: image, tag, image_tag, currency_image), repository (ORM and persistence), service (business logic), messaging (API handlers), and generators (test data).

Type	Description
image	Dynamically loaded image (SVG) with version tracking
tag	Category tag for images (e.g., 'flag', 'currency')
image_tag	Junction type linking images to tags (many-to-many)
currency_image	Links a currency ISO code to its primary image

Table	Type	Description
images	Temporal	SVG image storage with version tracking
tags	Temporal	Image category tags
image_tags	Junction	Many-to-many image-to-tag mapping
currency_images	Junction	One-to-one currency to primary image

All temporal tables use bitemporal fields (valid_from, valid_to) for historical tracking. Junction tables enable soft deletes via validity period closure.
