Test Scenario: Verify tenant-scoped badge catalogue (severities, definitions, code domains, mappings)
Table of Contents
This page documents a test scenario verifying Migrate badge_definition/badge_severity/code_domain to standard codegen + DQ publishing in Improve badge colour scheme support. It is filled in with the target dialog and checklist of steps before testing starts; the QA Validation Runner panel rewrites * Results in place on save.
Scenario Info
| Field | Value |
|---|---|
| Verifies task | Migrate badge_definition/badge_severity/code_domain to standard codegen + DQ publishing |
| Parent story | Improve badge colour scheme support |
| Target dialog | CodeDomainMdiWindow / BadgeDefinitionMdiWindow / BadgeSeverityMdiWindow |
| Clients | |
| State | PENDING |
Prerequisites
- Services running:
compass services start. - A freshly recreated database (
compass db recreate -y), so the system tenant's badge catalogue and its DQ artefact/dataset rows are in a known state. - Barclays Plc provisioned via
compass shell -f projects/ores.shell/scripts/library/provisioning/barclays_system_provision.ores(this already publishes thebasebundle, which now includes the badge severities/definitions/code domains/mappings datasets – confirmed automatically in this session's manual verification). - A running Qt client, not yet logged in.
Steps
Each step is its own heading — the title should be short (it's shown
as a single list entry in the QA Validation Runner); put any longer
instructions in the body below the title. The panel writes each
step's PASS/FAIL/PENDING outcome and notes back as a *** Result
child heading directly under it.
Log in as Barclays and open Code Domains
Log in as normal (Barclays Plc tenant). Go to Reference Data > Classifications > Code Domains. Confirm the list is populated (31 rows expected: party_status, book_status, fsm_state, etc.) – not empty. This is the exact list that was empty before this task's fix.
Result
| Field | Value |
|---|---|
| Status | PASS |
Open Badge Definitions
Go to System > Configuration > Badge Definitions. Confirm the list is populated (57 rows expected: active, inactive, frozen, etc.), each with its background/text colour and severity visible.
Result
| Field | Value |
|---|---|
| Status | FAIL |
| Notes | badge definitions, severity combo box has duplicates. this implies missing RLS. also combo box is not using badges. |

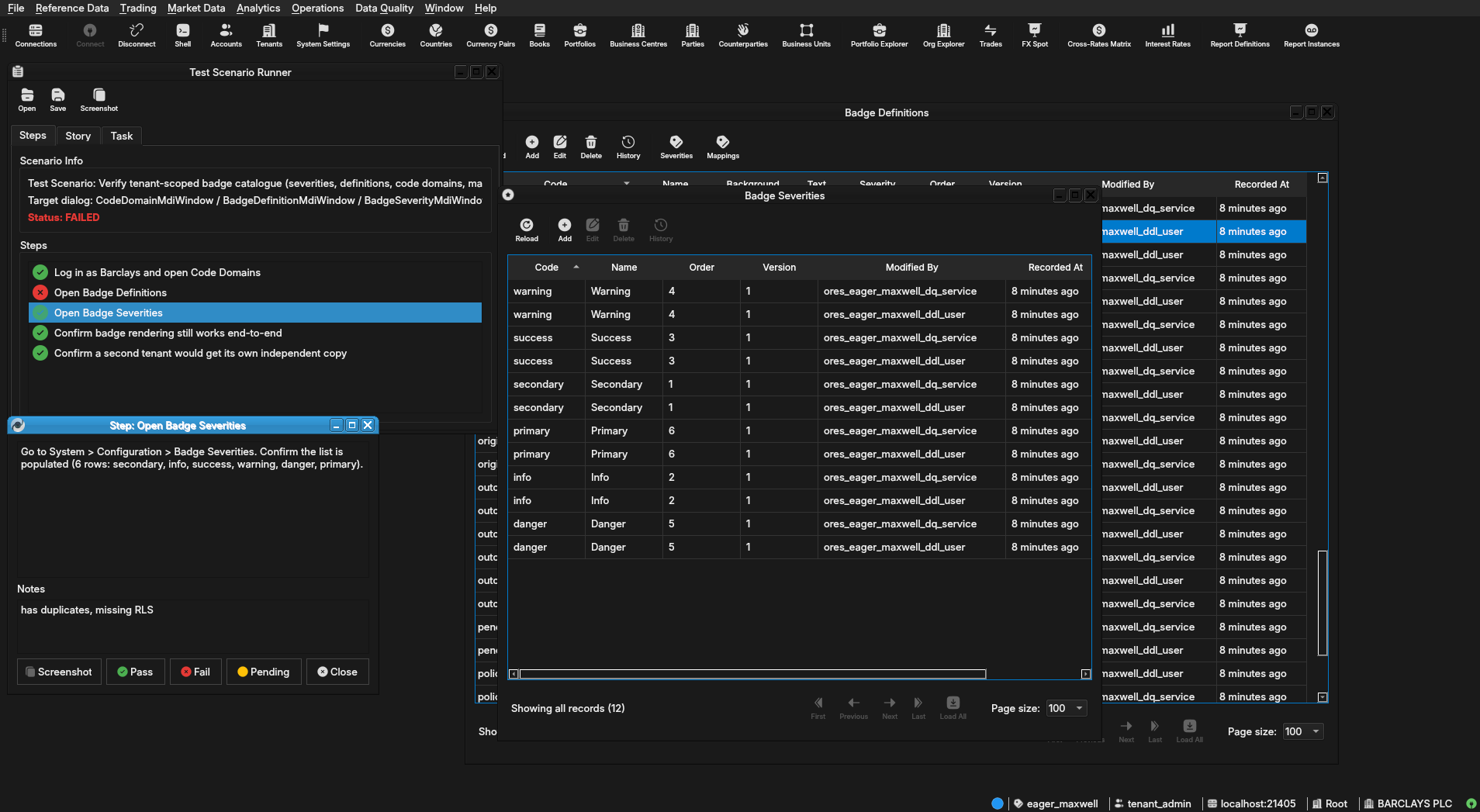

Open Badge Severities
Go to System > Configuration > Badge Severities. Confirm the list is populated (6 rows: secondary, info, success, warning, danger, primary).
Result
| Field | Value |
|---|---|
| Status | FAIL |
| Notes | has duplicates, missing RLS; ;  |

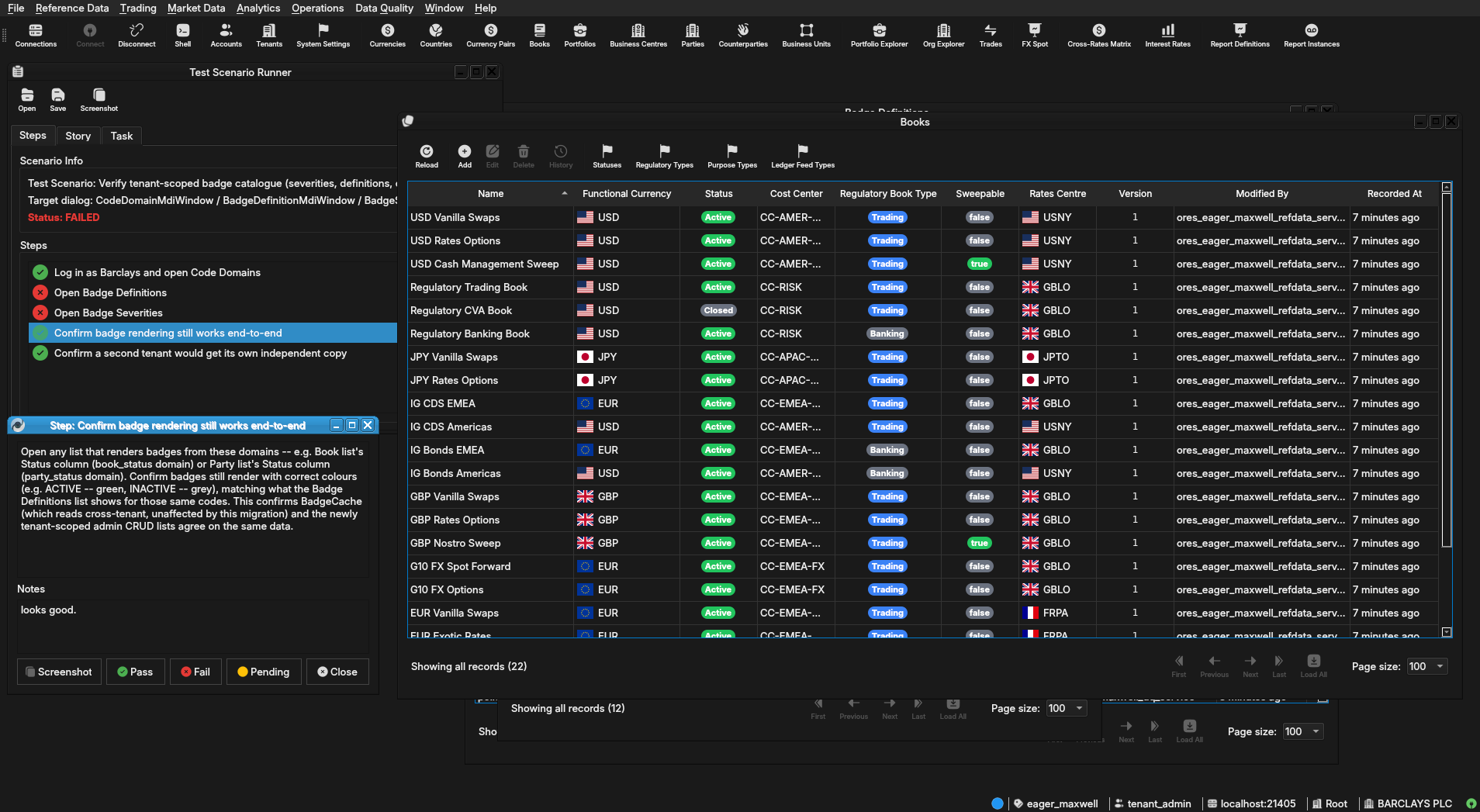

Confirm badge rendering still works end-to-end
Open any list that renders badges from these domains – e.g. Book list's Status column (book_status domain) or Party list's Status column (party_status domain). Confirm badges still render with correct colours (e.g. ACTIVE – green, INACTIVE – grey), matching what the Badge Definitions list shows for those same codes. This confirms BadgeCache (which reads cross-tenant, unaffected by this migration) and the newly tenant-scoped admin CRUD lists agree on the same data.
Result
| Field | Value |
|---|---|
| Status | PASS |
| Notes | looks good.;  |
Confirm a second tenant would get its own independent copy
(Optional, if time permits.) Provision a second tenant (e.g. via
compass shell, any dataset size) and confirm its Code
Domains/Badge Definitions/Badge Severities lists are also populated
independently – i.e. this isn't a fluke specific to Barclays.
Result
| Field | Value |
|---|---|
| Status | PASS |
Results
| Field | Value |
|---|---|
| Status | FAILED |
| Completed at | 2026-07-30T09:28:03Z |
| Branch | feature/regenerate-badge-repositories-with-tenant-read-scope |
| Commit | 195d29dad |
| Worktree | eager_maxwell |
