Model Assisted Software Development

MASD starts from the premise that a software project is a collection of physical artefacts — files and directories — that live on a filesystem, and that these artefacts can be understood as projections from a higher-dimension logical representation. The distinction is adapted from Lakos's Large-Scale C++ Software Design:

Logical design addresses all the type-related aspects of design — classes and their relationships. Physical design addresses the placement of logical entities, such as classes and functions, into physical ones, such as files and libraries. All design has a physical aspect.

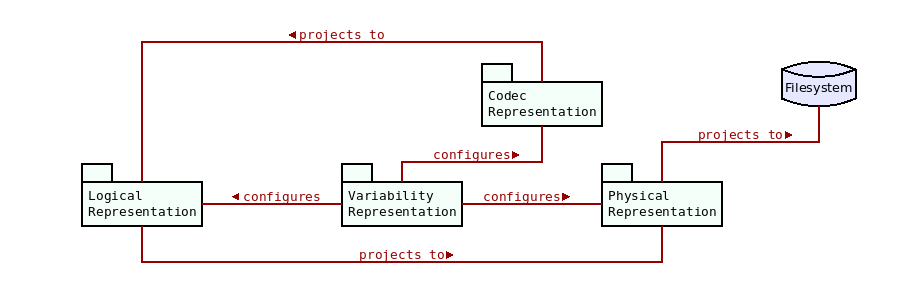

MASD partitions its problem domain into three orthogonal domains, each formalised by its own metamodel, plus a thin input representation:

• The logical domain — the language-neutral meta-model of domain concepts (classes, enumerations, primitives…). Formalised by the Logical Metamodel (LMM). See Logical Space.
• The physical domain — the file and folder artefacts that concepts are rendered into. Formalised by the Physical Metamodel (PMM). See Physical Space.
• The variability domain — the (non-structural) configuration that decides which artefacts are produced and how they are named. Formalised by the Variability Metamodel (VMM). See Variability.
• The codec model — the simplest external input representation, carrying stereotypes that route each element into its LMM meta-type.

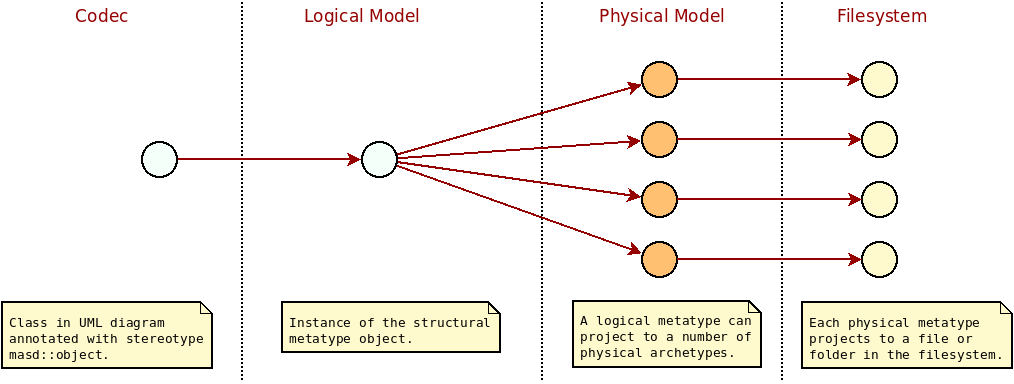

A projection is a function that takes a point in logical space and maps it to a set of points in physical space. The same logical entity projects into many physical artefacts: a class becomes a header, an implementation file, a serialisation routine, an ORM mapping, and so on — each a distinct expression of the same underlying logical truth. Changing the logical entity (adding a field) propagates to every projection simultaneously through regeneration.

The projection pathway runs through the dimensions of the LPS:

1. Codec representation — the simplest input form; stereotypes determine routing (e.g. masd::object → the structural object meta-type).
2. Logical model — an instantiation of the LMM.
3. Physical model — regions and archetypes of the PMM.

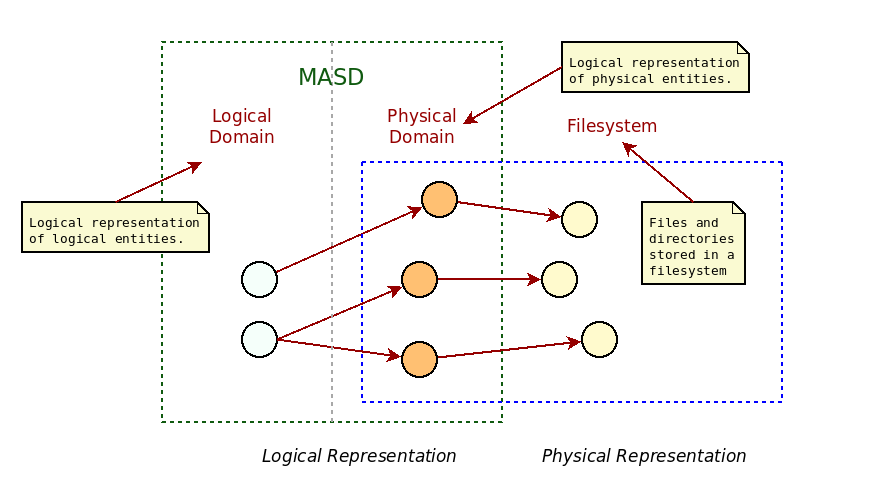

4. Filesystem — the rendered files and directories.

Each step is parameterised by non-structural variability (naming, file extensions, feature enablement) drawn from the VMM.

Model-Driven Engineering distinguishes three categories of transformation, all of which appear in the pathway above:

• Model-to-Model (M2M) — transforms one model into another at the same or a different abstraction level (codec → logical → physical).
• Model-to-Text (M2T) — produces a string representation (source code, configuration, documentation) from a model. Code generators occupy this category; it is the final physical → filesystem step.
• Text-to-Text (T2T) — converts one textual representation into another with no intermediate model.

See Models and Transformations for the formal treatment.

Every physical artefact has an address — a point in physical space — written as a four-segment path:

[technical space].[part].[facet].[archetype]

For example cpp.include.types.class_header names the C++ header archetype of the types facet in the include part; cpp.src.types.class_implementation its implementation. A prefix names a region: cpp is all C++ content, cpp.include all C++ artefacts under the include part. The four levels are detailed in Physical Space; in brief:

• Technical space (TS) — a programming language or platform together with its metamodel (C++, SQL, C#…). The outermost grouping. See Technical Space.
• Part — a named subdivision of a component grouping related file artefacts (e.g. include and src for C++). A part is an arbitrary modelling choice for partitioning the entities of a problem domain; it is expressed in the technical space's language and conventions but is not a subdivision of the technical space itself.
• Facet — a container for a set of related file artefacts that all belong to the same TS. Like a part, a facet is an arbitrary partitioning/taxonomy of the logical space (for example grouping all the artefacts that give a type its serialisation, or its hashing). It is the mechanism by which trivial structural functions are composed. See Facet.
• Archetype — the most granular unit: the generating function and template for a single output file. Each archetype produces exactly one file per logical entity.

Not a subdivision of the technical space. Parts and facets are arbitrary partitionings of the logical space — choices about how to classify a problem domain's entities by the role each artefact plays. They "belong" to a technical space only because the TS's language is used to express the partitioning. See Physical Space for the full treatment.

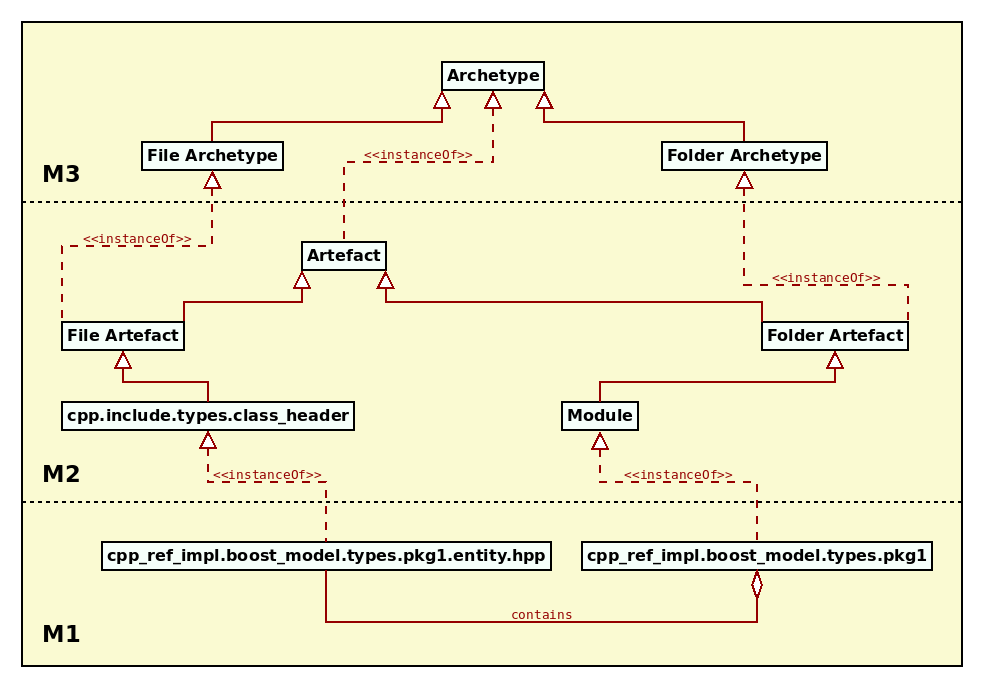

MASD is structured as a classical four-level metamodelling hierarchy — M3 metametamodel (the archetypes) → M2 metamodel (the PMM) → M1 model (the physical model) → M0 (the filesystem). See Physical Space for the M3–M0 table.

• The Logical Metamodel (LMM) houses the meta-elements that model logical entities. Its structural package ranges from traditional meta-types (module, enumeration, builtin, object) up through idiomatic meta-types (exception, primitive, entry point) to design patterns and object templates. See Logical Space.
• The Physical Metamodel (PMM) encodes the TS→Part→Facet→Archetype geometry as a queryable structure the generator consults at runtime. See Physical Space.
• The Variability Metamodel (VMM) governs non-structural variability: enabling or disabling regions of physical space and configuring projections. See Variability.

The LMM defines a fixed set of logical entity types — object, value, enumeration, primitive, exception, concept, module, and builtin. The type determines which facets are available and what artefacts can be produced, and each type has a default active facet set that the variability model can override. See Logical Space for the full type descriptions and the default-facet-per-type table.

MASD reserves the word variability for non-structural variability — the configuration that does not change the object graph of a model, only how it is rendered. The VMM addresses two things: enabling or disabling regions of physical space (technical spaces, facets, archetypes), and configuring projections (naming, file extensions, feature toggles).

• A feature is a single configuration point.
• A feature bundle groups semantically related features.
• A feature template is an abstract feature instantiated over a domain (e.g. masd.archetype).
• A binding point is the set of legal meta-entities at which a feature may be used.
• A profile is a bundle of configuration points bound to logical elements, named after the ability it confers (serializable, =hashable=…), and reusable across products and product lines.

See Variability for the full treatment.

The analytical heart of MASD is the Schematic and Repetitive Pattern in Physical Space (SRPP): a class of infrastructure code that varies predictably across entities but is otherwise mechanically identical. Content is judged an SRPP operationally — "one determines if a physical pattern is schematic and repetitive by reproducing it by automated means". The physical modelling process has five steps:

1. Sampling — collect representative hand-written artefacts.
2. Decomposition / segmentation — break each into prologue, body, epilogue.
3. Labelling and classification — assign artefacts to parts and facets.
4. Reconstruction — write the trivial function (archetype) that regenerates the pattern.
5. Cataloguing and parameterisation — register the archetype and expose its variability.

A generated artefact "may only be composed of zero or one trivial structural functions and zero or more trivial non-structural functions" — each gets its own archetype.

The principles below are defined in full in The MASD Methodology.

1. Focus Narrowly — target infrastructure code only, never business logic.
2. Integrate Pervasively — fit the existing toolchain without disruption.
3. Evolve Gradually — grow coverage incrementally, driven by concrete practice rather than up-front design.
4. Govern Openly — keep templates, models, and configuration in the open and subject to ordinary review.
5. Standardise Judiciously — prefer de facto standards at the core; conform physical artefacts to project conventions.
6. Assist and Guide — span an automation spectrum from stub generation to full product-line generation, assisting rather than replacing the engineer.

Rather than designing an abstract generator first, MASD extracts the generator from a proven, hand-written implementation — a bootstrapping / dogfooding approach described for Dogen in MASD Reference Implementation:

1. Commission a reference entity by hand — every layer written without generator involvement.
2. Identify the SRPPs — patterns that appear identically across the hand-written set are candidates for extraction.
3. Encode each SRPP as an archetype — a template parameterised by the logical model.
4. Register the archetypes in the physical metamodel / profile catalogue.
5. Verify zero drift — run the generator against the reference model and diff against the hand-written files; a zero diff confirms faithful extraction.
6. Extend to new entities — commissioning a new entity reduces to authoring its model and running the generator.

This avoids the central failure mode of top-down code generation: a generator that produces code nobody has actually used.

MASD frames automation as a spectrum rather than a binary:
