ores.dq.api

Table of Contents

1. Diagram

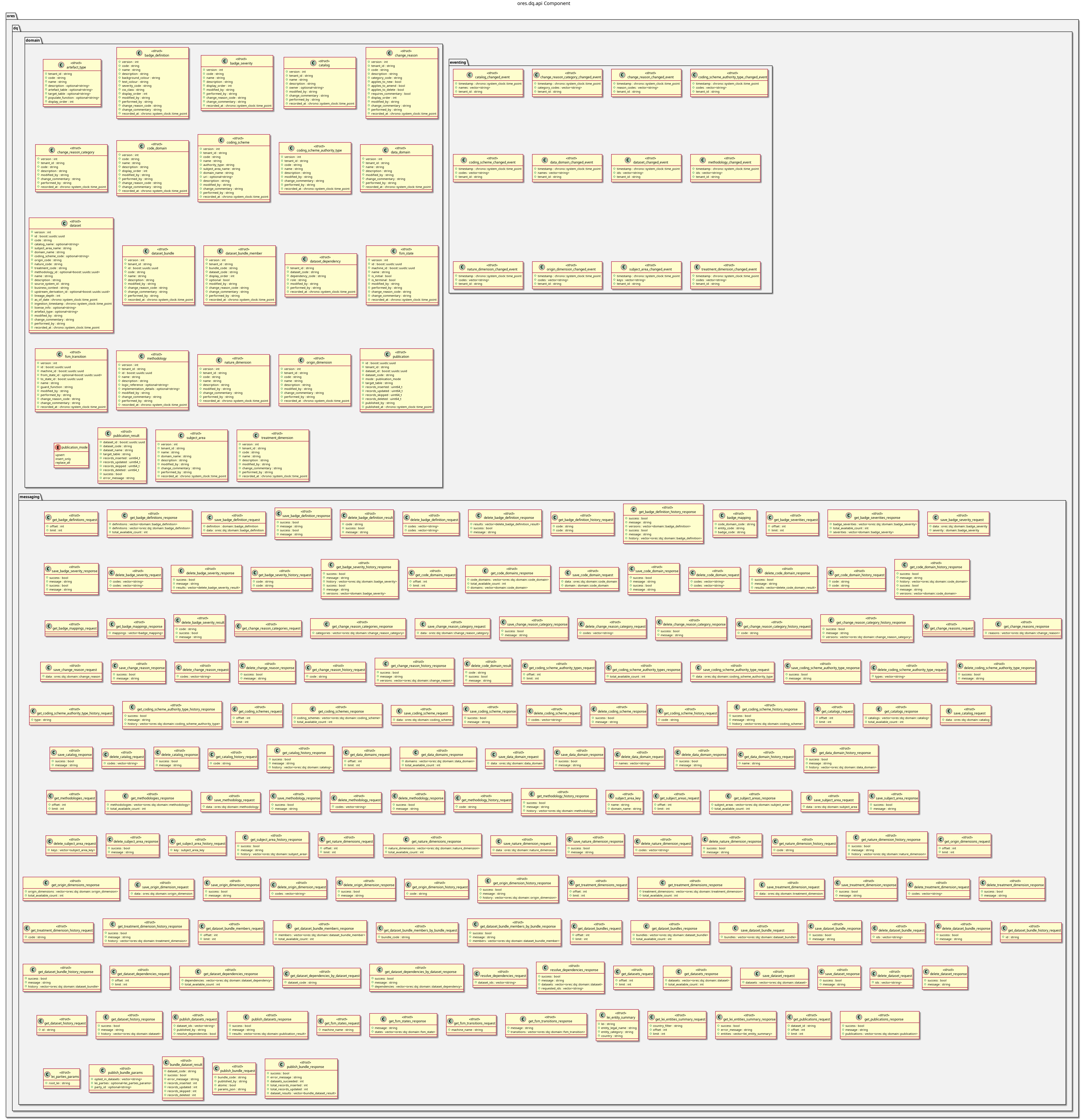

ores.dq.api component diagram

Figure 1: ores.dq.api

2. Summary

ores.dq.api is a header-only library defining the shared contract for the data-quality domain. It provides domain types for badges, badge definitions, datasets, dataset bundles, coding schemes, change-management records, and artefact types, together with JSON and table I/O via generated codecs, and the NATS message protocol schemas consumed by ores.dq.core and all domain components that interact with the DQ system.

3. Inputs

  • Domain entity type definitions across domain/ headers.
  • NATS protocol message definitions.

4. Outputs

  • C++ headers for all DQ domain types with JSON and table I/O variants.
  • NATS protocol headers for badge, dataset, and change-management operations.

5. Entry points

  • include/ores.dq.api/domain/ — all domain entity headers.
  • include/ores.dq.api/messaging/ — NATS protocol message headers.

6. Dependencies

  • fort — formatted table rendering.

7. Build dependencies

What the shared profile cannot know, declared here rather than hand-edited into the generated build file. Each block is spliced into its generated file after the profile's baseline.

8. See also

9. Test dependencies

The suites link what the profile cannot know about.

target_link_libraries(${lib_target_name}
    PUBLIC
        ores.eventing.api.lib
        ores.platform.lib
    PRIVATE
        ores.utility.lib
        faker-cxx::faker-cxx
        libfort::fort
        Boost::boost)

target_link_libraries(${lib_target_name} PRIVATE ores.codec.pch)
target_link_libraries(${tests_target_name}
    PRIVATE
        ores.dq.api.lib
        ores.telemetry.core.lib
        ores.utility.lib
        ores.testing.lib
        faker-cxx::faker-cxx
        Catch2::Catch2
        ores.openssl_cleanup
        Threads::Threads)
