ores.http.api

Table of Contents

1. Diagram

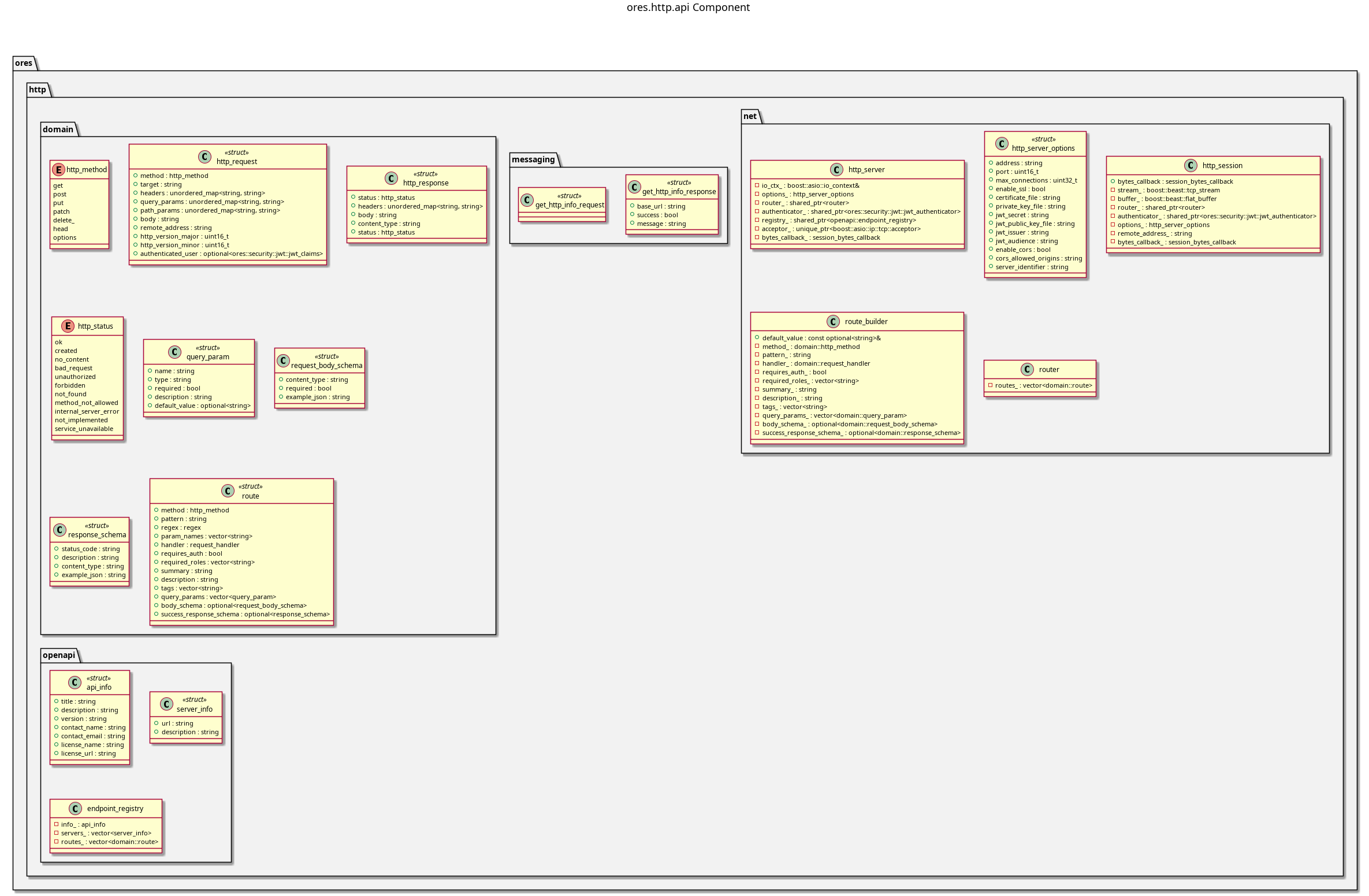

ores.http.api component diagram

Figure 1: ores.http.api

2. Summary

ores.http.api is the primary HTTP infrastructure library for ORE Studio. It provides an asynchronous HTTP/1.1 server built on Boost.Beast and Boost.Asio, JWT authentication middleware (parsing, validation, and claims extraction), path-based routing, an OpenAPI endpoint registry, and all domain types for HTTP request/response and JWT claims. This is the foundation for the REST-API surface exposed to external clients (web, mobile) alongside the NATS-based internal API.

3. Inputs

  • Incoming HTTP requests on the configured TCP port.
  • JWT tokens in the Authorization: Bearer header for authenticated routes.
  • Configuration: bind address, port, JWT public key.

4. Outputs

  • HTTP responses to clients.
  • Parsed JWT claims injected into request context for downstream handlers.
  • OpenAPI endpoint registry used to generate openapi.json at runtime.

5. Entry points

  • include/ores.http.api/net/http_server.hpp — server lifecycle management.
  • include/ores.http.api/net/router.hpp — route registration and dispatch.
  • include/ores.http.api/domain/ — HTTP and JWT domain types.
  • include/ores.http.api/openapi/ — OpenAPI endpoint registry.
  • include/ores.http.api/messaging/ — any NATS protocol schemas for HTTP bridge.

6. Dependencies

  • Boost.Beast, Boost.Asio — async HTTP server.
  • nlohmann/json — JWT claim serialisation.
  • ores.iam.api — JWT claims types aligned with IAM sessions.

7. Build dependencies

What the shared profile cannot know, declared here rather than hand-edited into the generated build file. Each block is spliced into its generated file after the profile's baseline.

8. See also

9. Test dependencies

The suites link what the profile cannot know about.

find_package(Boost REQUIRED COMPONENTS json url)

target_link_libraries(${lib_target_name}
    PUBLIC
        ores.security.lib
        ores.telemetry.core.lib
        ores.utility.lib
        Boost::boost
        Boost::json
        Boost::url
    PRIVATE
        OpenSSL::SSL)
target_link_libraries(${tests_target_name}
    PRIVATE
        ${lib_target_name}
        ores.testing.lib
        Catch2::Catch2
        faker-cxx::faker-cxx
        ores.openssl_cleanup
        Threads::Threads)
