ores.iam.service

Table of Contents

Diagram

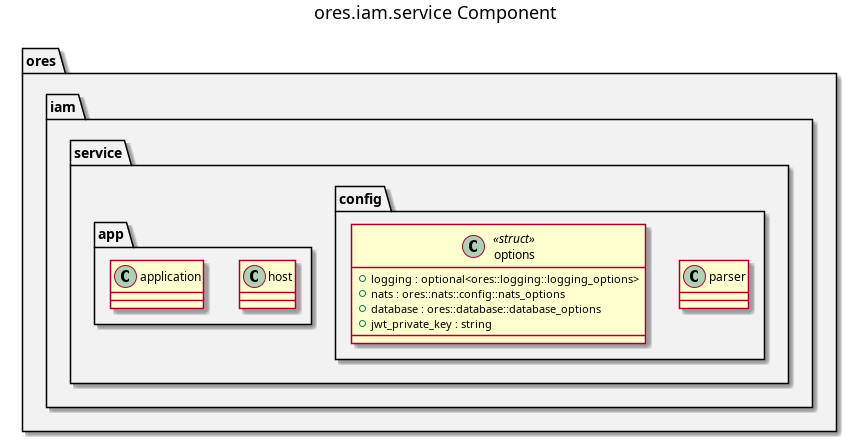

ores.iam.service component diagram

Figure 1: ores.iam.service

Summary

ores.iam.service is the NATS service entrypoint for the IAM domain. It reads configuration, opens database and NATS connections, registers all message handlers from ores.iam.core, and runs the event loop. All business logic lives in ores.iam.core; this component is responsible only for bootstrap, dependency injection, and graceful shutdown.

Inputs

  • Configuration file: NATS server URL, PostgreSQL connection string, and environment settings.
  • NATS request messages from Qt clients and peer services on the ores.iam.* subject hierarchy (0x2000–0x2FFF range).

Outputs

  • A running NATS service handling all IAM operations.
  • NATS response messages returned to callers.
  • Structured logs via ores.logging.

Entry points

  • src/main.cpp — process entry point.
  • src/app/ — application bootstrap and dependency injection.
  • src/config/ — configuration parsing and validation.

Dependencies

  • ores.iam.core — all NATS handlers, repositories, and domain services.
  • ores.iam.api — shared protocol types.
  • ores.logging — structured logging infrastructure.
  • nats.c — NATS client for connection management.

See also
