ores.shell.api

Table of Contents

1. Diagram

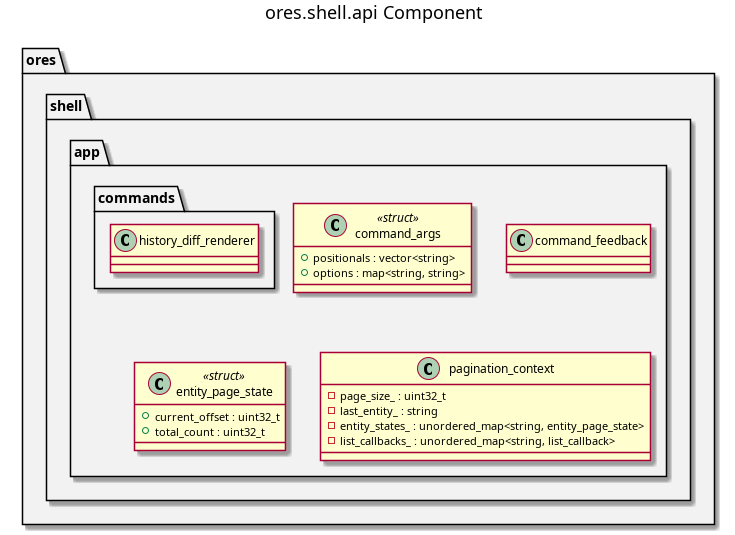

ores.shell.api component diagram

Figure 1: ores.shell.api

2. Summary

ores.shell.api holds the parts of the shell that every command unit uses and that depend on no other part of the shell. A command unit parses its tokens with command_args, writes errors through command_feedback, tracks paging through pagination_context, and issues its NATS call through the do_auth_request helper in request_helpers.hpp. The part also carries history_diff_renderer, which renders the version-diff output shared by the history verbs.

The part links ores.nats and ores.history.api and nothing above them. It does not link ores.shell.application, so a new adapter part can depend on the shell plumbing without pulling in the REPL host.

3. Inputs

  • Free-form token vectors from the command layer, parsed by parse_args.
  • The logged-in NATS session, passed by reference into every helper.
  • Pagination state the caller owns and threads through a request.

4. Outputs

  • command_args — the parsed positional and option token set.
  • command_feedback — the stream state that marks a message as an error.
  • pagination_context — per-entity page offset, total count, and list callbacks.
  • do_auth_request — one typed authenticated request/response round trip.
  • history_diff_renderer — formatted version-history output.

5. Entry points

  • include/ores.shell/app/command_args.hpp — token parsing.
  • include/ores.shell/app/command_feedback.hpp — error stream marker.
  • include/ores.shell/app/pagination_context.hpp — paging state.
  • include/ores.shell/app/request_helpers.hpp — authenticated request helper.
  • include/ores.shell/app/commands/history_diff_renderer.hpp — history rendering.

6. Dependencies

  • ores.nats — NATS transport and the request/timeout helpers.
  • ores.history.api — history protocol types for the diff renderer.
  • ores.logging — logger factory.
  • cli — the menu and handler types the command layer registers against.

7. See also

  • ores.shell — the composite this part belongs to.
  • Shell recipes — the how-to recipes for ores-shell usage, and the single source of truth for the generated .ores script library (projects/ores.shell/scripts/library/).
