ores.variability.api

Table of Contents

1. Diagram

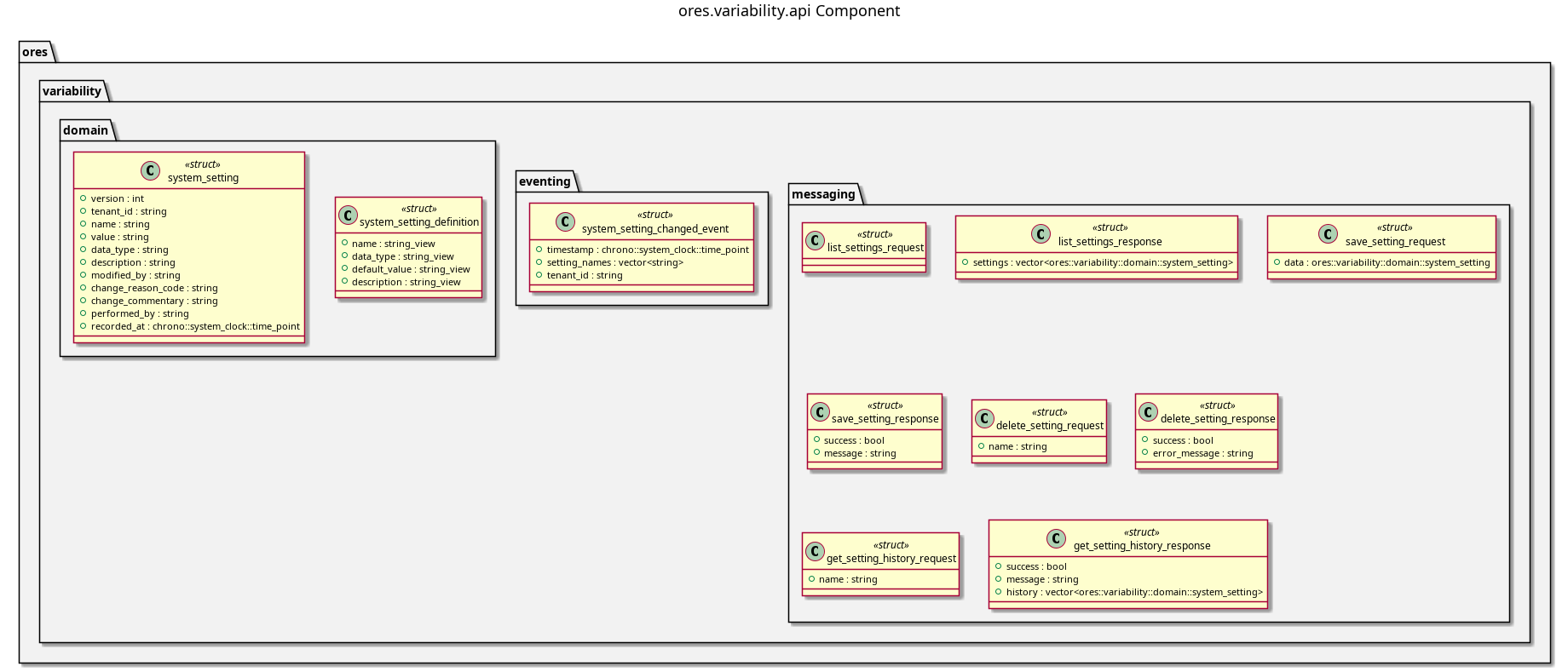

ores.variability.api component diagram

Figure 1: ores.variability.api

2. Summary

ores.variability.api is a header-only library defining the shared contract for the variability domain. It provides domain types for system settings (system_setting, system_settings) with JSON and table I/O, and the NATS protocol schemas for the variability subject hierarchy. Both ores.variability.core and consumer components depend on this library.

3. Inputs

  • Domain entity type definitions: system_setting.hpp, system_settings.hpp.
  • NATS protocol message definitions.

4. Outputs

  • C++ headers for variability domain types with JSON and table I/O.
  • NATS protocol headers for setting query and update operations.
  • Aggregate header: ores.variability.api.domain.hpp.

5. Entry points

  • include/ores.variability.api/domain/ — all domain entity headers.
  • include/ores.variability.api/messaging/ — NATS protocol message headers.

6. Dependencies

  • fort — formatted table rendering.

7. Build dependencies

What the shared profile cannot know, declared here rather than hand-edited into the generated build file. Each block is spliced into its generated file after the profile's baseline.

8. See also

9. Test dependencies

The suites link what the profile cannot know about.

target_link_libraries(${lib_target_name}
    PUBLIC
        ores.eventing.api.lib
        ores.platform.lib
    PRIVATE
        ores.utility.lib
        faker-cxx::faker-cxx
        libfort::fort)

target_link_libraries(${lib_target_name} PRIVATE ores.codec.pch)
target_link_libraries(${tests_target_name}
    PRIVATE
        ores.variability.api.lib
        ores.telemetry.core.lib
        ores.utility.lib
        ores.testing.lib
        faker-cxx::faker-cxx
        Catch2::Catch2
        Threads::Threads)
