ores.assets.api

Table of Contents

1. Diagram

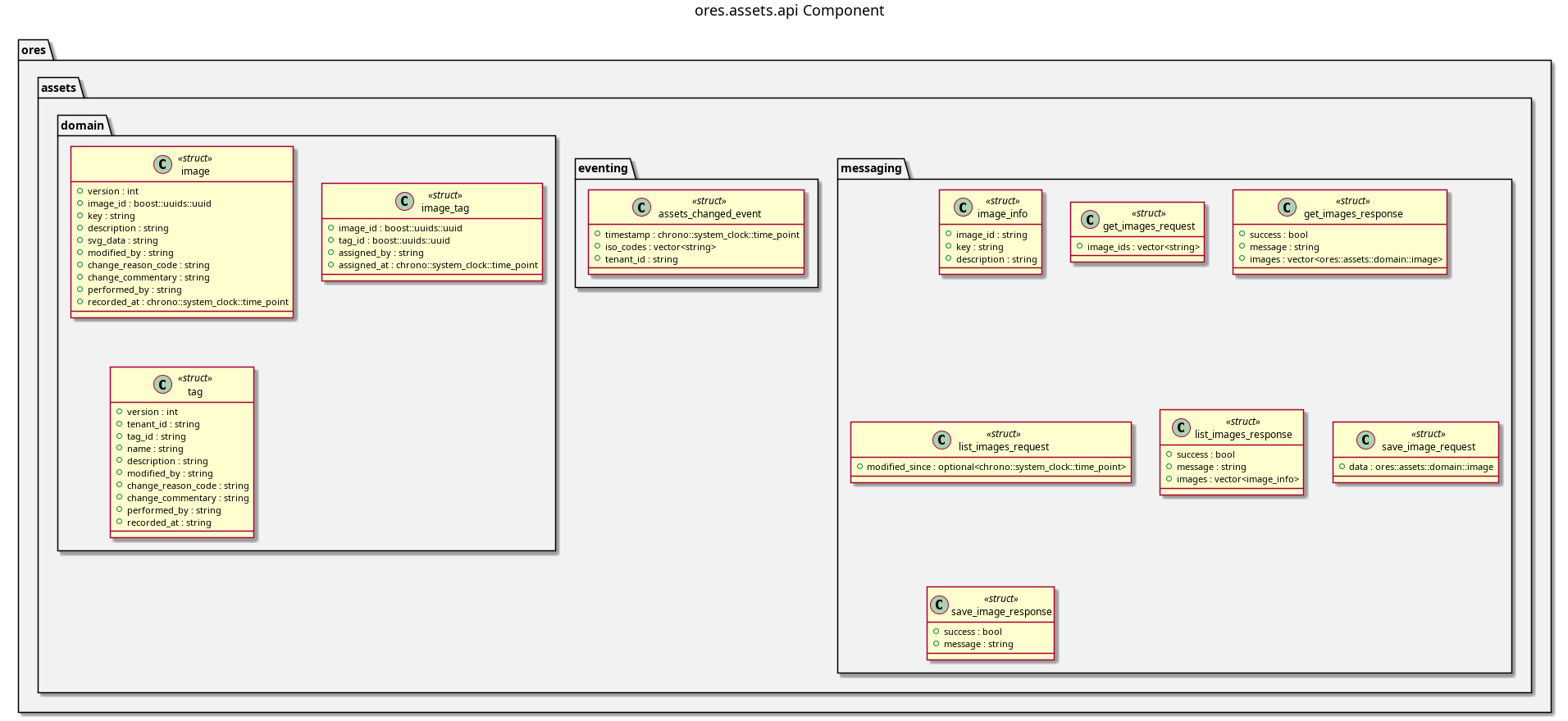

ores.assets.api component diagram

Figure 1: ores.assets.api

2. Summary

ores.assets.api is a header-only library defining the shared contract for the assets domain. It provides domain types for images (SVG text), tags, and their associations, JSON serialisation via generated codecs, and the NATS message protocol schemas consumed by both ores.assets.core (server) and UI client components.

3. Inputs

  • Domain entity definitions in domain/ headers.
  • NATS protocol message definitions in messaging/assets_protocol.hpp.

4. Outputs

  • C++ headers: image.hpp, tag.hpp, image_tag.hpp, with JSON I/O variants (*_json_io.hpp).
  • NATS protocol header: messaging/assets_protocol.hpp.
  • Aggregate header: ores.assets.api.domain.hpp.

5. Entry points

  • include/ores.assets.api/domain/ — all domain entity headers.
  • include/ores.assets.api/messaging/assets_protocol.hpp — NATS protocol message types.

6. Dependencies

7. Build dependencies

What the shared profile cannot know, declared here rather than hand-edited into the generated build file. Each block is spliced into its generated file after the profile's baseline.

8. See also

9. Test dependencies

The suites link what the profile cannot know about.

target_link_libraries(${lib_target_name}
    PUBLIC
        ores.eventing.api.lib
        ores.platform.lib
    PRIVATE
        ores.utility.lib
        faker-cxx::faker-cxx
        libfort::fort)

target_link_libraries(${lib_target_name} PRIVATE ores.codec.pch)
target_link_libraries(${tests_target_name}
    PRIVATE
        ores.assets.api.lib
        ores.telemetry.core.lib
        ores.utility.lib
        ores.testing.lib
        faker-cxx::faker-cxx
        Catch2::Catch2
        ores.openssl_cleanup
        Threads::Threads)
