ores.qt

Diagram

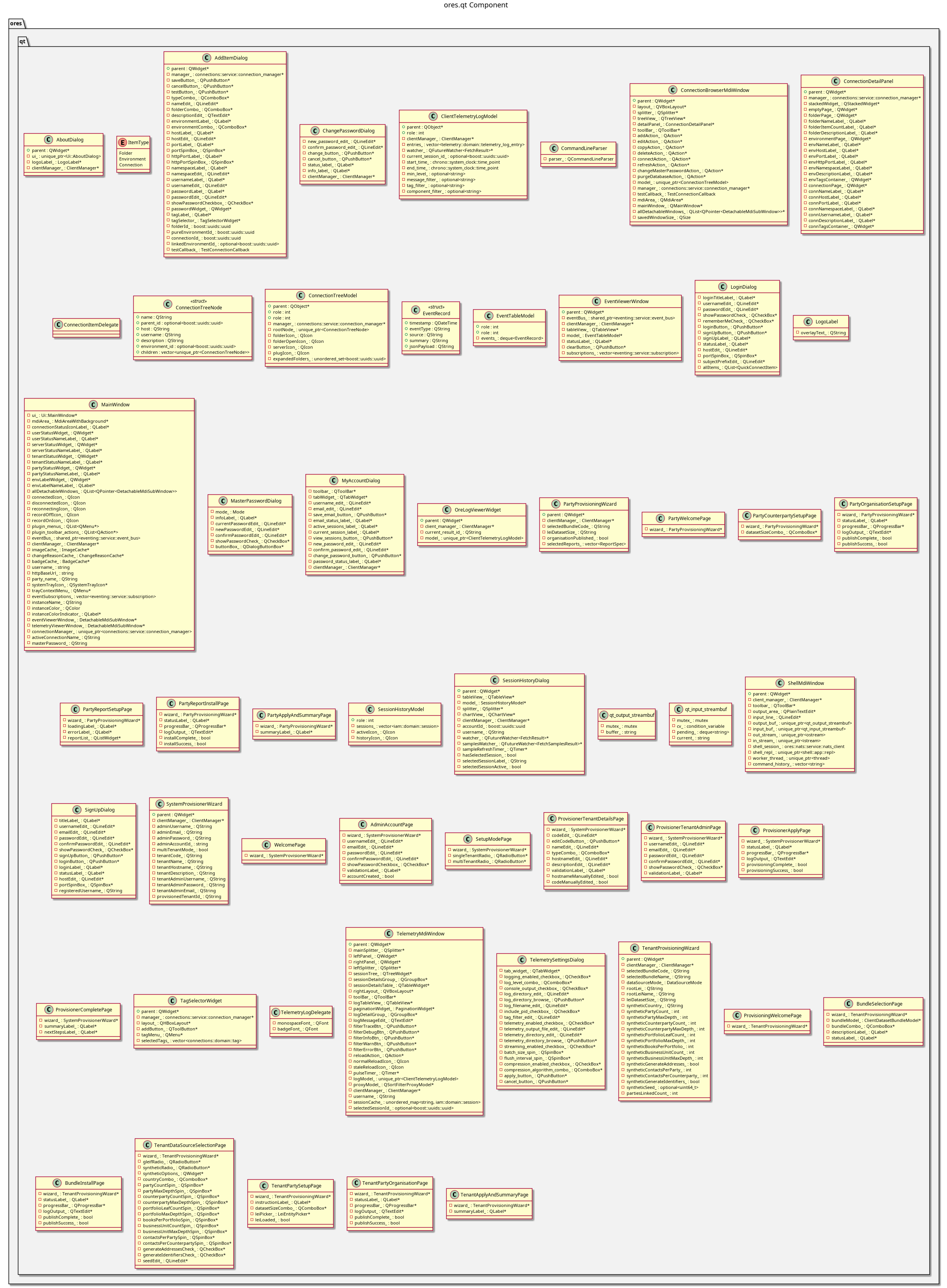

Figure 1: ores.qt

Summary

ores.qt is the Qt 6 desktop application for ORE Studio. It provides a Multiple Document Interface (MDI) with detachable windows for managing currencies, accounts, parties, trades, and other domain entities. All data operations are asynchronous via NATS; the UI uses an entity-controller pattern where MainWindow delegates to domain-specific controllers (e.g., CurrencyController) which manage their MDI windows, dialogs, and table models. The application is composed of the core shell and feature modules housed in sibling projects under ores.qt.*.

Inputs

NATS responses from domain services (IAM, refdata, trading, etc.).
User interactions: login credentials, entity create/edit/delete commands.
Server connection bookmarks from ores.connections.

Outputs

Rendered MDI desktop with entity management windows.
NATS request messages sent to domain services on user actions.

Entry points

src/main.cpp — application entry point.
src/MainWindow.cpp — MDI shell and controller wiring.
src/LoginDialog.cpp — authentication UI.

Dependencies

Qt 6 (Widgets, Network) — UI toolkit.
ores.qt.api — shared Qt types, NATS client wrapper, base controllers.
Domain API libraries: ores.iam.api, ores.refdata.api, ores.trading.api, etc. — NATS protocol types.
ores.connections — server bookmark storage.
ores.nats — NATS transport.
