ores.refdata.api

Table of Contents

1. Diagram

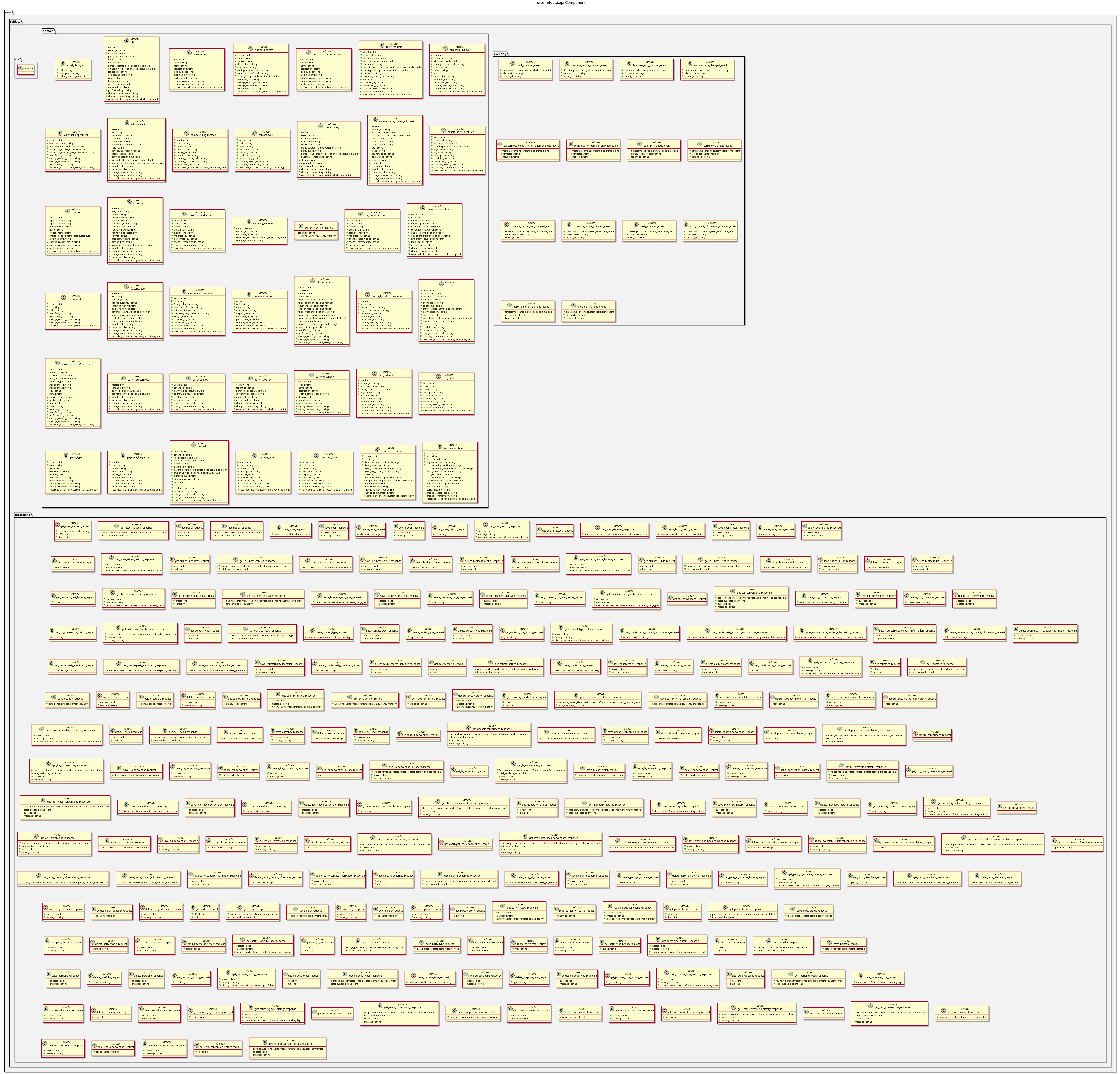

ores.refdata.api component diagram

Figure 1: ores.refdata.api

2. Summary

ores.refdata.api is a header-only library defining the shared contract for the reference-data domain. It provides over 150 domain types for currencies, countries, counterparties, books, business units, business centres, and trading structure entities, together with JSON, table, and CSV I/O generated via generated codecs, and the NATS message protocol schemas for the 0x3000–0x3FFF range. All consumers of reference data (ores.trading.api, UI clients, peer services) depend on this library.

3. Inputs

  • Domain entity type definitions across domain/ headers.
  • NATS protocol message definitions.

4. Outputs

  • C++ headers for all reference-data domain types with JSON, table, and CSV I/O variants.
  • NATS protocol headers covering the 0x3000–0x3FFF message range.

5. Entry points

  • include/ores.refdata.api/domain/ — all domain entity headers (~148 types).
  • include/ores.refdata.api/messaging/ — NATS protocol message headers.

6. Dependencies

  • fort — formatted table rendering.

7. Build dependencies

What the shared profile cannot know, declared here rather than hand-edited into the generated build file. Each block is spliced into its generated file after the profile's baseline.

8. See also

9. Test dependencies

The suites link what the profile cannot know about.

target_link_libraries(${lib_target_name}
    PUBLIC
        ores.diff.lib
        ores.eventing.api.lib
        ores.iam.api.lib
        ores.inbox.api.lib
        ores.platform.lib
        ores.workflow.api.lib
        ores.dq.api.lib
    PRIVATE
        ores.utility.lib
        faker-cxx::faker-cxx
        libfort::fort)

target_link_libraries(${lib_target_name} PRIVATE ores.codec.pch)
target_link_libraries(${tests_target_name}
    PRIVATE
        ores.refdata.api.lib
        ores.telemetry.core.lib
        ores.utility.lib
        ores.testing.lib
        faker-cxx::faker-cxx
        Catch2::Catch2
        ores.openssl_cleanup
        Threads::Threads)
