ores.refdata.service

Table of Contents

Diagram

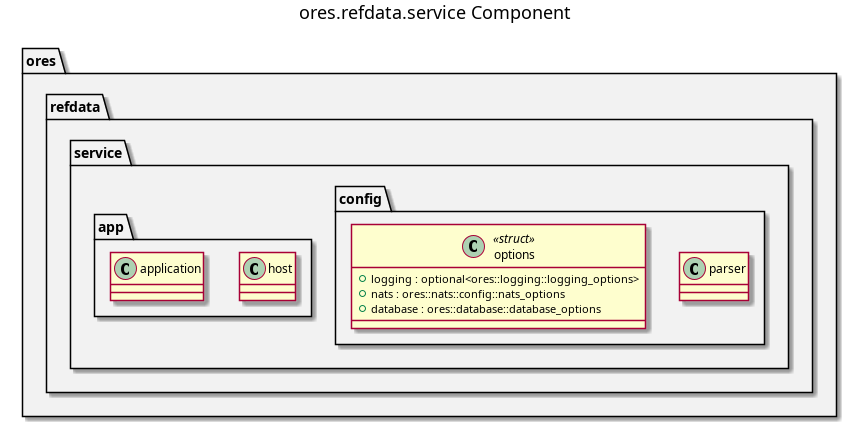

ores.refdata.service component diagram

Figure 1: ores.refdata.service

Summary

ores.refdata.service is the NATS service entrypoint for the reference-data domain. It reads configuration, opens database and NATS connections, registers all message handlers from ores.refdata.core, and runs the event loop. All business logic lives in ores.refdata.core; this component is responsible only for bootstrap, dependency injection, and graceful shutdown.

Inputs

  • Configuration file: NATS server URL, PostgreSQL connection string, and environment settings.
  • NATS request messages from Qt clients and peer services on the ores.refdata.* subject hierarchy (0x3000–0x3FFF range).

Outputs

  • A running NATS service handling all reference-data operations.
  • NATS response messages returned to callers.
  • Structured logs via ores.logging.

Entry points

  • src/main.cpp — process entry point.
  • src/app/ — application bootstrap and dependency injection.
  • src/config/ — configuration parsing and validation.

Dependencies

  • ores.refdata.core — all NATS handlers, repositories, and domain services.
  • ores.refdata.api — shared protocol types.
  • ores.logging — structured logging infrastructure.
  • nats.c — NATS client for connection management.

See also
