ores.telemetry.service
Table of Contents
1. Diagram

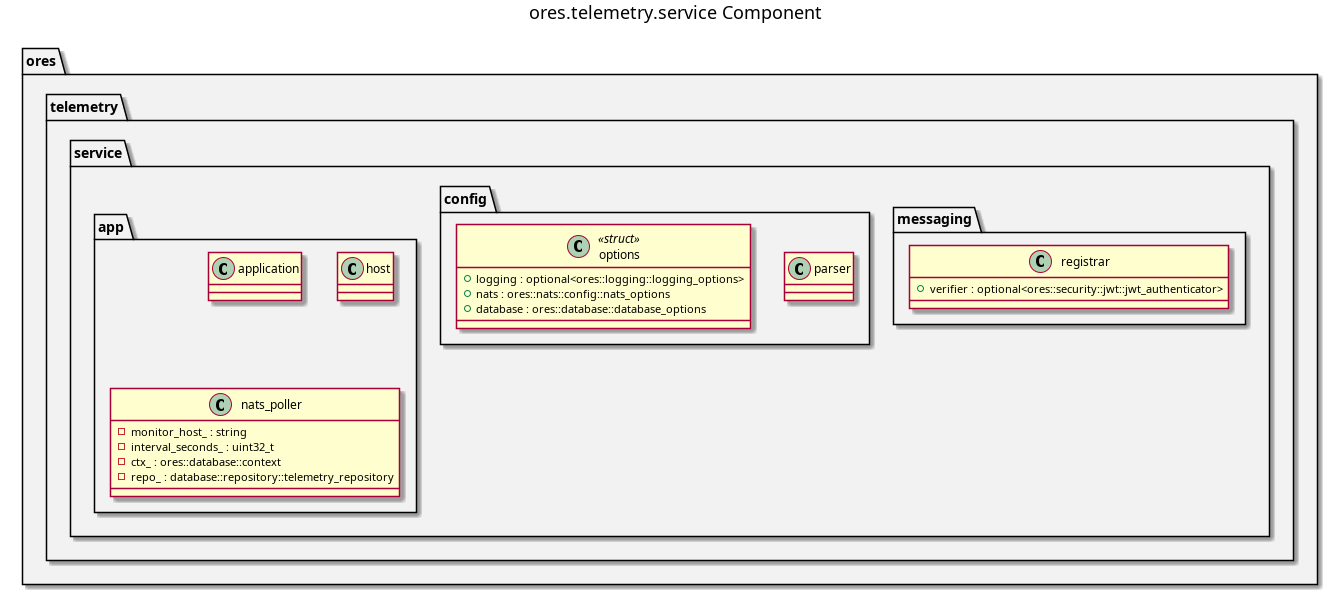

Figure 1: ores.telemetry.service
2. Summary
ores.telemetry.service is the NATS service entrypoint that receives log
records from other services and persists them to the telemetry database. It
registers NATS handlers for log ingestion, runs the event loop, and forwards
records to ores.telemetry.database for storage.
3. Inputs
- Configuration file: NATS server URL, PostgreSQL connection string.
- NATS messages on the six
telemetry.v1.>subjects: log entries published by wrapper nodes, heartbeats from every service, and the four queries. - NATS server and stream samples the service polls from the NATS HTTP monitoring API.
4. Outputs
- Log records, service samples and NATS samples persisted to the
ores_telemetryschema viaores.telemetry.database. - Replies to the four query subjects.
5. Entry points
src/main.cpp,src/app/,src/config/,src/messaging/.
6. Dependencies
ores.telemetry.database,ores.telemetry.core,ores.service,ores.nats,ores.logging,nats.c.
7. Build dependencies
What the shared profile cannot know, declared here rather than hand-edited into the generated build file. Each block is spliced into its generated file after the profile's baseline.
8. Options
The options this service takes beyond logging, NATS and the database. Codegen writes the member, its wire field, its command-line declaration and its assignment from each entry.
8.1. nats_monitor_url
HTTP base URL of the NATS monitoring endpoint.
Defaults to localhost on the standard NATS monitoring port. Set to empty to disable NATS metrics collection.
8.2. nats_monitor_interval_seconds
How often to poll the NATS monitoring endpoint, in seconds.
9. See also
- ores.telemetry.core — logging library and the messaging types this service serves.
- ores.telemetry.database — database persistence layer.
- ores.telemetry Messaging Reference — the six subjects and their handlers.
- ores.nats — the transport this service subscribes and replies through.
10. Test dependencies
The suites link what the profile cannot know about.
target_link_libraries(${lib_target_name}
PUBLIC
ores.service.lib
ores.security.lib
ores.telemetry.core.lib
ores.telemetry.database.lib
ores.nats.lib
ores.database.lib
ores.utility.lib
PRIVATE
Boost::boost)
target_link_libraries(${tests_target_name}
PRIVATE
${lib_target_name}
ores.utility.lib
ores.testing.lib
ores.logging.lib
Catch2::Catch2
faker-cxx::faker-cxx
Threads::Threads)
