User Journey: Choose where I work

Table of Contents

This page documents a user journey: A member picks the party they act for and switches between their parties.

A user journey describes what one person is trying to do, before anything is built. It is a design document that outlives any sprint, so it names the screens, the entity fields each screen shows, and the operations and messages each step needs.

1. Goal

"I want to see where I work, and act for the right one." The member reads the parties their account is associated with, marks one as the party quick sign-in uses, and changes the party the session is working for. The journey is done when the name in the top bar is the party they meant, and no screen shows another party's data.

2. Actor and trigger

The member: an account of type user, signed in, acting on their own association. The trigger is the party picker at sign-in, or a change of desk. It starts when the member opens Where I work from the account menu, and ends when they leave it.

Two rules frame the journey:

  • Every account must work in at least one party. An account with no party association is refused at sign-in, so this journey cannot present an empty list.
  • An account that works in more than one party chooses one at sign-in, and can switch later.

3. Steps

  1. Sign in. The system answers with the parties the account is associated with and the stored default. One party goes straight through; more than one asks the member to choose.
  2. See where I work. The member opens Where I work. The system shows one screen: who they are signed in as, the party they are acting for, and the list of parties with the default called out.
  3. Set the default party. The member selects a party and chooses Set as default. The system checks that the party is one of the account's associations, and refuses the change when it is not. The choice decides what quick sign-in picks next time.
  4. Switch the party I act for. The member selects another party and chooses Switch to selected party. The system re-scopes the session to that party and issues a fresh sign-in token, so the screens read that party's data.
  5. Leave. The member goes back. Every list, detail and report now reads the party they chose.

No step waits on the server after the reply. The journey holds no state of its own: if a switch fails, the member is still signed in and can try again.

4. Screens and wireframes

One screen with three panels. The identity summary, the party list and the actions are panels of that screen rather than separate screens, because the member thinks of them as one question: where am I, and where can I be.

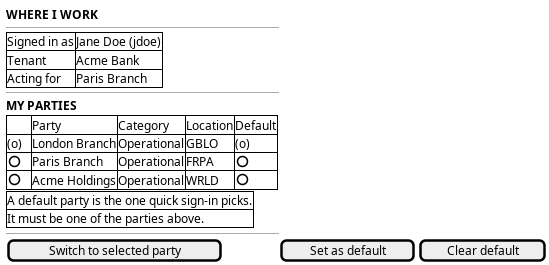

Figure 1: Where I work: who is signed in, the parties the account works in, the default party, and the action buttons.

The rule the screen has to state is the one the server enforces: the default party must be one of the account's assigned parties. The picker offers nothing else, so the member cannot state an invalid default.

5. Entities composed

Entity What it contributes Model
account Username, full name, job title, and the stored default party ores.iam.account
account_party The association itself: which parties this account works in ores.iam.account_party
party Party name, category and business centre, so the list reads as places ores.refdata.party

account.default_party_id is a nullable soft reference to a party, and it is the only field this journey writes on the account itself. account_party holds the membership the write is validated against. The account-to-party link is the junction; it is not a column on either side.

6. Operations and messages

Step Operation Subject Status
Sign in Read the parties the account works in, and the default iam.v1.auth.login exists
See where I work Read the account's party associations iam.v1.account_parties.list_by_account_id exists
Set the default party Set my own default party iam.v1.accounts.set-default-party exists
Switch the party I act for Re-scope the session to another party iam.v1.accounts.switch-party exists

All four subjects come from the generated protocol: ores.iam.login_messages.org defines iam.v1.auth.login, ores.iam.account_messages.org defines the three account subjects, and the account_parties subjects are rendered by the junction model ores.iam.account_party_junction.org.

iam.v1.accounts.set-default-party is self-service: the handler takes the account id from the caller's own token, so no permission is needed and the operation cannot be aimed at somebody else. It also validates membership, and it is idempotent when the party is already the default. iam.v1.accounts.update carries the same field default_party_id, but that subject needs iam::accounts:update, which is a tenant-administrator permission, so it is not the member's path.

7. What is missing

  1. No readable party list outside sign-in. The protocol exposes the account_parties association, which carries party_id alone, and no party read that turns an id into a name. iam.v1.auth.login is the only place that returns party names today, and it belongs to the sign-in step. The screen can show the party it is acting for; the rest of the list has nothing to display. The candidate is a party lookup the member may call, for example refdata.v1.parties.get_many, scoped to the parties the account works in.
  2. Nothing in the web client switches party. wire-protocol/src/client.ts carries selectParty and switchParty, and SessionProvider exposes chooseParty, but the only caller is the sign-in picker. There is no account menu entry and no Where I work screen. TopBar.tsx says party switching belongs with the account, and leaves it there.
  3. No default-party call at all in the web client. set-default-party exists on the server and is mapped to no method, no BFF route and no control.
  4. Clearing the default is not expressible. The wireframe shows Clear default, but set_my_default_party_request carries only party_id, so there is no way to state "no default". The candidate is a nullable body, or a clear-default-party subject. Until then the screen leaves the button out.
  5. No client-side wrapper for the association read. The generated protocol has account_parties.list_by_account_id; wire-protocol/src/operations.ts and the BFF do not speak it, so the screen would have to add the call.

8. Related journeys

  • Present myself — the identity summary at the top of this screen shows the name and photo that are corrected there.
  • Draw the reporting line — the other half of a person's place in the organisation: who they report to inside the party they chose.
  • Protect my account — a switch issues a fresh sign-in token, and the session and sign-in state are read there.
  • Know what I may do — the roles that apply change with the party the session acts for, and they are listed there.

9. Related knowledge

10. See also
